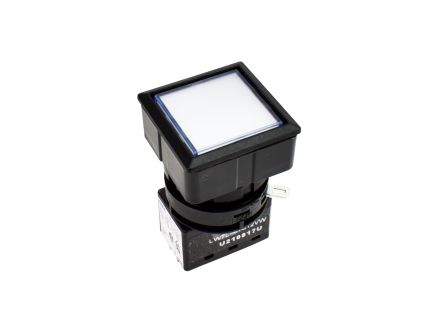

Name: LW7L-M1C12VW IDEC Switches, LW-Silhouette Series
Brand: IDEC
SKU: LW7L-M1C12VW-IDEC
Price: 46.90 USD
Availability: BackOrder

Specifications

Specifications
Manufacturer Part Number	LW7L-M1C12VW
Manufacturer	IDEC
Product Series	LW-Silhouette
Family Series	IDEC Switches, LW-Silhouette Series
Illuminated	Yes
Operation	Momentary
Mounting	25 mm
Operator Size (mm)	28 mm
Contacts	SPDT
Max Voltage	250 VAC, 250 VDC
Current Rating	3 A
Bezel	Plastic Round
Lamp Type	LED
Nominal Lamp Voltage	6 VDC, 12 VAC
Lens/Button Shape	Square Flush
Operator Color	White
Terminal Type	PCB
Protection Rating	IP65
Approvals	CE, CSA, TUV, UR
H x W x D	1.05 " x 1.05 " x 2.10 "
Net Weight	0.05 lbs
Gross Weight	0.08 lbs

Description

Switches, LW-Silhouette Series

Item #

LW7L-M1C12VW

Pushbutton Illuminated

LW-Silhouette Series Information

PC Board Mount, Solder or Screw Terminals Available
Round Metallic or Plastic Bezels are Available
Collective Mounting Saves Space
Pushbuttons, Pilot Lights, Illuminated Pushbuttons, Selector Switches, Key Selector Switches, and Illuminated Selector Switches
Square Pushbuttons also Available with Switchguards
Key Selector Switches with High‑Security Lock Mechanism
Separate Contacts with a Locking Lever Enable Easy Installation even when Mounted Collectively
Gold (Gold‑Clad Silver) or Silver Contacts.
IP65 Protection
UL, CSA, CE, and TUV Approved
