T1P2AH

MFG #: T1P2AH

Qty

T1P2AH US Motors Motors

MFG #:

T1P2AH

Motor, 1 HP, 1800 RPM, 56H

View Full Specs

Skip to the end of the images gallery

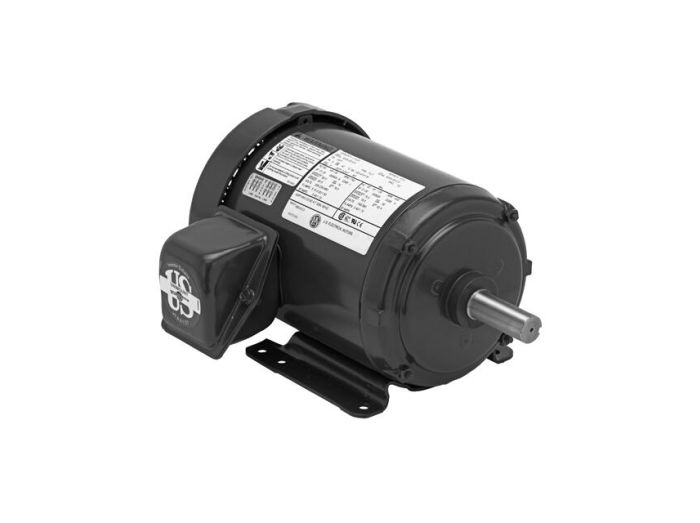

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

T1P2AH US Motors Motors

MFG #:

T1P2AH

Motor, 1 HP, 1800 RPM, 56H

View Full Specs

Request Lead Time

Qty

This item cannot be canceled or returned

Specifications

Specifications

Specifications
Country of Origin	Mexico
Manufacturer Part Number	T1P2AH
Manufacturer	US Motors
Family Series	US Motors Motors
Type	General Purpose
Horsepower	1 hp
Kilowatts	0.8 kW
Speed	1,725 RPM
RPM	1,725 RPM
Number of Poles	4
Phase	3
Frequency	60 Hz
NEMA Frame	56H
AC Voltage	208-230 VAC, 460 VAC
Nominal Voltage	208 VAC, 240 VAC, 480 VAC
Enclosure	Totally Enclosed Fan Cooled
Mounting	Rigid
Current Rating	3.3-3.2 A, 1.5 A
Composition	Rolled Steel
Overload Protection	None
H x W x D	12.00 " x 12.00 " x 18.50 "
Net Weight	35.5 lbs
Gross Weight	35.5 lbs
